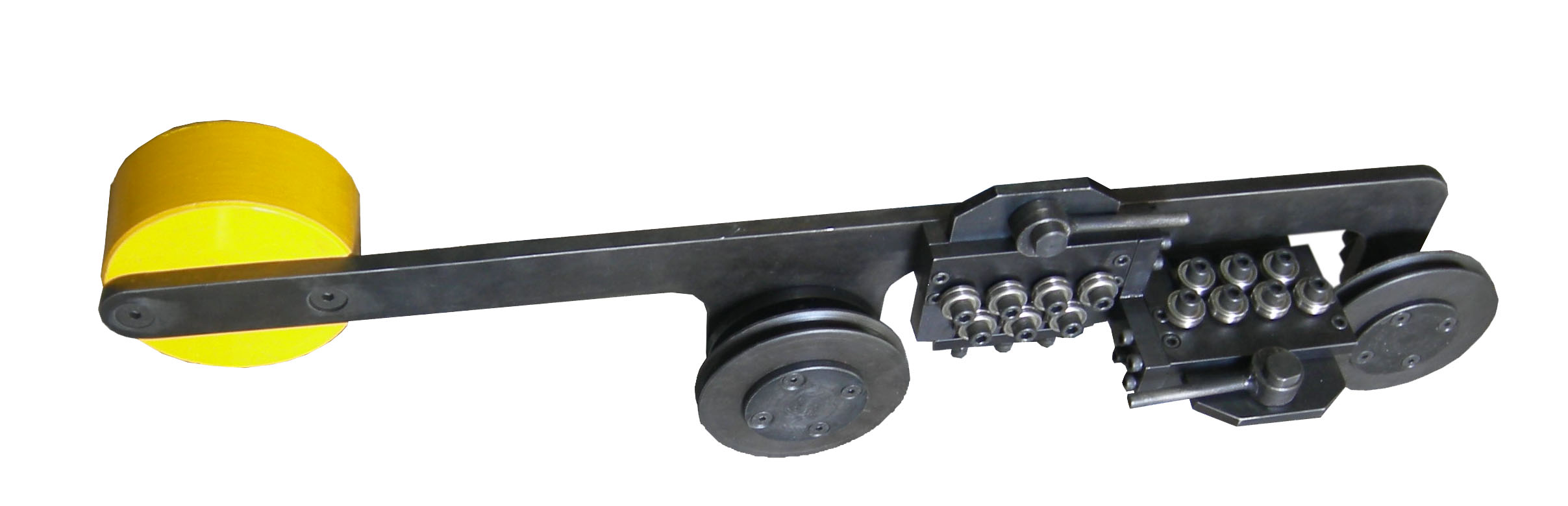

Killing Rollers / Wire Straighteners
UNIK makes Killing Rollers Assembly for removing the Cast & Helix from the MIG wires & SAW wires, before they are wound on a bobbin / plastic spool. This is achieved by 2 sets of grooved rollers arranged in both Horizontal plane as well as Vertical plane. In each set, there will be one set of fixed rollers & one set of adjustable rollers. By adjusting the upset distances, the wire is bent in opposite directions & get straightened. The killing rollers are available in 2 models as standard as follows :
| Model | UKR-HV-530 | UKR-HV-722 |
| Suitable for Wire diameters | 2mm to 3mm | 0.8mm to 1.2mm |
| Speed of wire | 15m/sec | 025m/sec |
| Diameter of Rollers | 30mm | 22mm |
| No of rollers per plane | 5 | 7 |
